Mount

Chassis Mount, Screw

Mounting Type

Chassis Mount

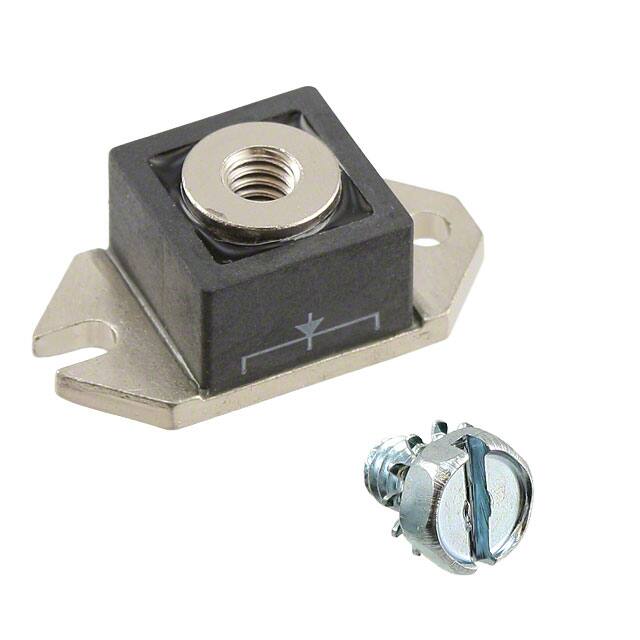

Package / Case

HALF-PAK

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Packaging

Bulk

Published

2012

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

1

ECCN Code

EAR99

Max Operating Temperature

175°C

Min Operating Temperature

-55°C

Applications

GENERAL PURPOSE

HTS Code

8541.10.00.80

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Pin Count

1

JESD-30 Code

S-XUFM-X1

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

4mA @ 40V

Voltage - Forward (Vf) (Max) @ If

700mV @ 180A

Case Connection

CATHODE

Forward Current

180A

Forward Voltage

700mV

Max Reverse Voltage (DC)

40V

Average Rectified Current

180A

Number of Phases

1

Peak Reverse Current

4mA

Max Repetitive Reverse Voltage (Vrrm)

40V

Capacitance @ Vr, F

7500pF @ 5V 1MHz

Peak Non-Repetitive Surge Current

2.5kA

Radiation Hardening

No

RoHS Status

RoHS Compliant
